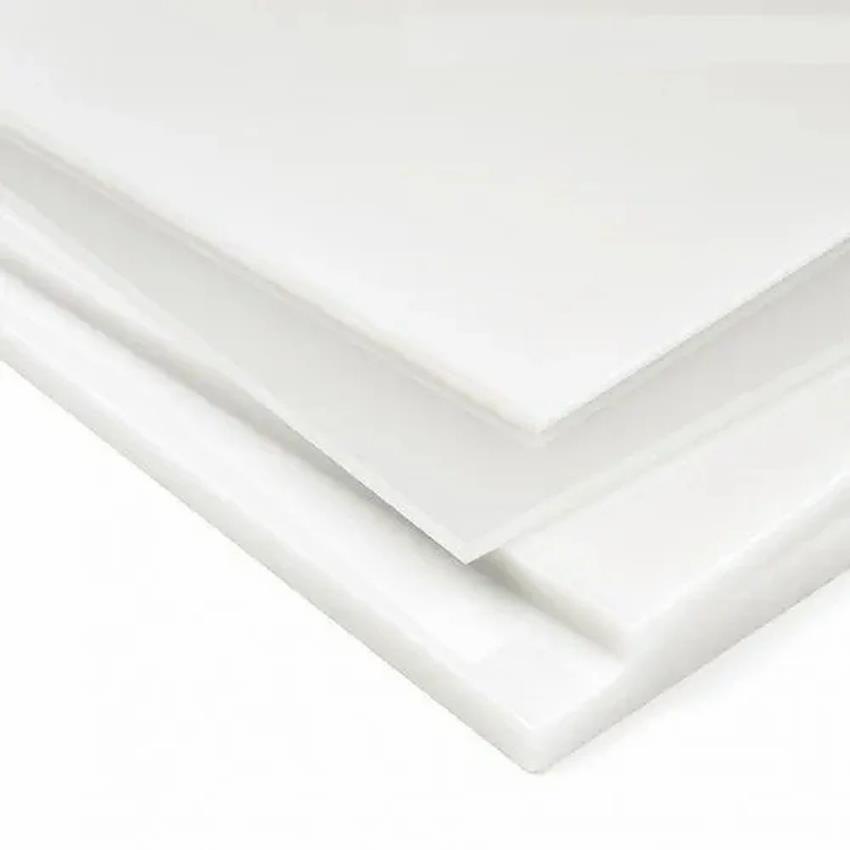

PTFE sheet

Products List

PTFE product includes sheet, Tube , Rod , Film and gaskets etc., they are molded, skived or cut from 100% virgin PTFE. It has the best chemical corrosion resistance among known plastics. Without being aging, lowest friction coefficient, wear resistance. The unloaded operating temperature range is -180~+260C.

CONSTRUCTION:

Filled PTFE Sheet

The filled PTFE products are molded PTFE resin mixed with the most frequently used filler materials such as glass fiber, carbon fiber and graphite etc. The filled PTFE has improved compression strength, better abrasion resistance, high thermal conductivity and lower thermal expansion compared with pure PTFE products.

PROPERTIES & APPLICATION:

Products	Tensile Strength	Pressure Mpa	Density g/cm³	Temperature C
PTFE Sheet	15Mpa	10	2.1~2.3	-100 ~ 250
Filled PTFE Sheet	10Mpa	16	2.1~2.3	-100 ~ 260
Expanded PTFE sheet	good quality with reasonable price

Seal materials, electrical insulation parts, lining, oil less lubricating materials etc.

NORMAL DIMENSION:

Size(mm)	Thickness(mm)	tolerance
150X150	1.0~30	0.30~0.50
250X250	1.5~30	0.30~0.50
300X300	1.5~30	0.30~0.50
450X450	1.5~30	0.30~0.50
600X600	1.5~30	0.30~0.50
800X800	1.5~30	0.30~0.50
1000X1000	1.5~30	0.30~0.50
1200X1200	2~30	0.30~0.50
1000X2000	3~35	0.30~0.60
1500 X 1500	3~35	0.30~0.60
2000 X 2000	5~35	0.30~0.60
