Non-asbestos Gaskets:

Products List

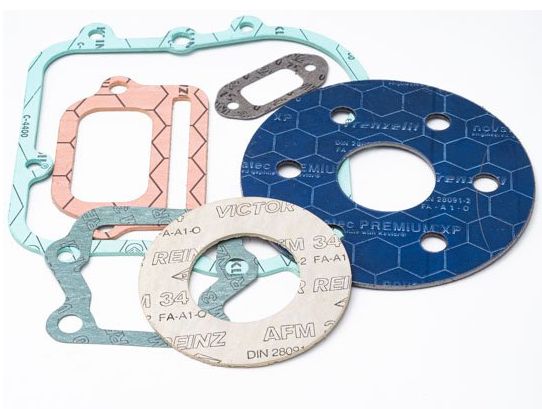

Non-asbestos gaskets are sealing gaskets aramid fiber mixed with nitrile rubber (NBR), produced from a combination of special fillers and inorganic fibers. It is resistant to water, steam and oil. Ideal for light to medium pressure environments.

Max. Temperature: 350 °C
Max. Pressure: 100 Bar
Thickness: 1mm - 5mm

Product Technical Specifications

DN	Inch	Inner diameter (mm)	Outer diameter (mm)
15	1/2^"	22	50
20	3/4^"	28	60
25	1^"	35	70
32	11/4^"	43	82
40	11/2^"	50	92
50	2^"	60	107
65	21/2^"	77	127
80	3^"	91	142
100	4^"	115	162
125	5^"	141	192
150	6^"	169	218
200	8^"	220	273
250	10^"	274	330
300	12^"	325	380
